Series CLEAN ION Mini-pleat ULPA Filter


Features:

* Ultra Low pressure drops
* High efficiency £¨Pressure drop£©
* Thin in depth
* Light weight
* Low operation cost

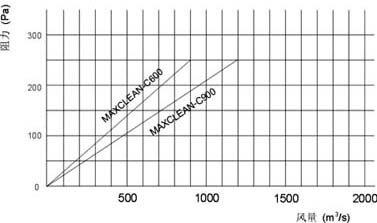

Pressure drop-air flow

Uses: Suitable for Manufacturing of electron semicon- ductors¡¢atomforce research¡¢medicament¡¢ precision instrument¡¢toiletry ect.

Standard Specifications:

Model
Outside
dimensions(mm)
Air flow rated
£¨m3/h£©
Dust capacity
£¨g£©
Face Velocity
£¨m/s£©
Initial resistance
£¨Pa£©
Final resistance
£¨Pa£©
Efficiency
£¨0.1-0.2um£©
MAXCLEAN-C600
610 X 610 X 69
600
50
0.45

<=170
400
99.9995%
MAXCLEAN-C900
915 X 610 X 69
900
950
0.45
MAXCLEAN-C1200
1220 X 610 X 69
1200
1600
0.45
MAXCLEAN-C250
305 X 610 X 69
250
250
0.45

Materials and operating conditions£º

External Frame
Aluminum
Sealant
Gel-glue
Separator
Hot-melt
Filter media
Glass fiber
Maximum operationg temperature
80¡æ
Maximum operating humidity
100%
Gasket
Chloroprene
